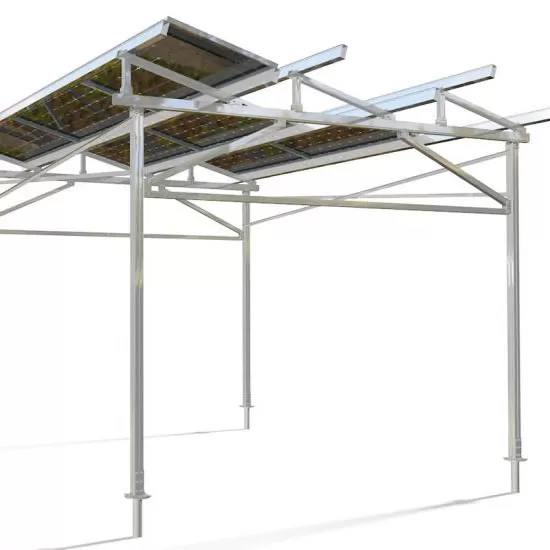

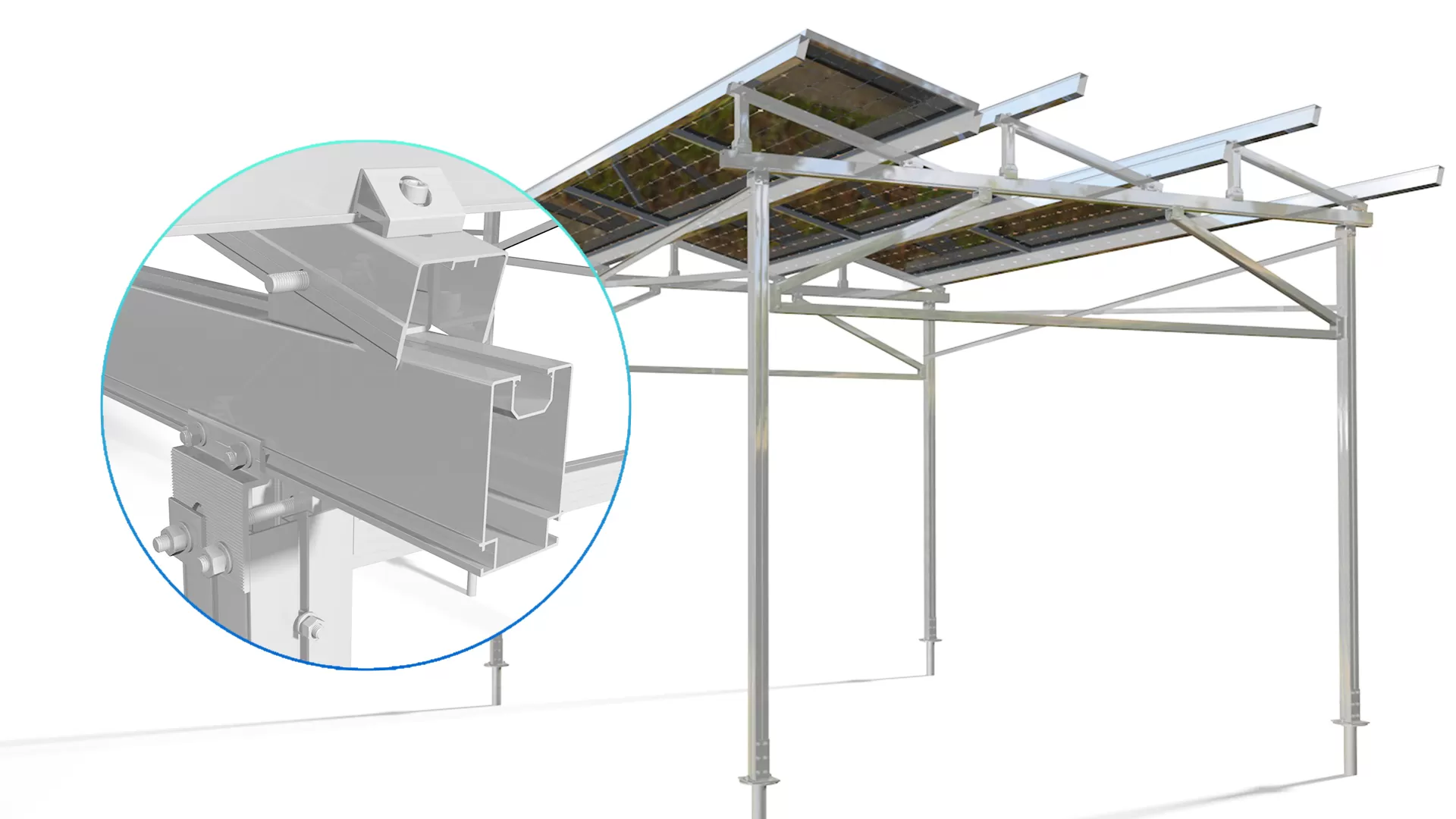

Farmland Solar Mounting
Product parameters
Application: Fields
Height from the ground: 2.3m~2.5m
Snow load: 2.4KN/M2 or customized
Recommended wind speed: 46m/s
Module positioning: horizontal/vertical
Foundation spacing: depending on the load
Material: High corrosion resistant galvanized steel plate, hot dip galvanized steel Q235B, Q355
Standard: ASCE7-10, JIS C8955:2017, EN1090, International Building, Code IBC 2009
Product Overview
The agricultural-photovoltaic complementary system is made of high-strength aluminum alloy and is easy to install. The span, ground clearance and shading rate can be customized according to customer needs. It makes full use of sunlight and farmland, combines agriculture and power generation, and forms a new power generation model of "cultivating under the shed and generating electricity above the shed."
Customized services
In order to meet diverse installation needs, we provide a variety of customization options:
Size customization: Tailor the specifications and dimensions of the bracket according to the project site and layout requirements.
Function customization: Optimize the bracket function configuration to achieve personalized functions such as tracking adjustment and quick installation.
Accessory customization: Configure various exclusive accessories according to the actual needs of the project to ensure the efficiency and stability of the system installation.
01
ASCE_7-10
02
EN1090
03
JIS C8955:2017
04
International Building
05
Code IBC 2009
06
Product Specification
Height from the ground | 2.3m~3.5m |
Installation angl | 0~30° |
Maximum snow loa | 2.4KN/m2 |
Maximum wind speed | 46 m/S |
Foundation spacing | Depends on the load conditions |
Material | Highly corrosion-resistant galvanized steel plate/Q235B/Q355 |
Advantage
By laying solar panels with different light transmittance or different
panel layout designs on agricultural supports, the lighting needs of different crops can be met.
Using solar energy sharing racks, insect-proof nets, shade cloths, chains, etc. can be installed.
There are few installation parts and high degree of pre-installation, no need for on-site cutting and drilling, reducing on-site construction difficulty and construction time, and greatly reducing project costs.
Product application display
