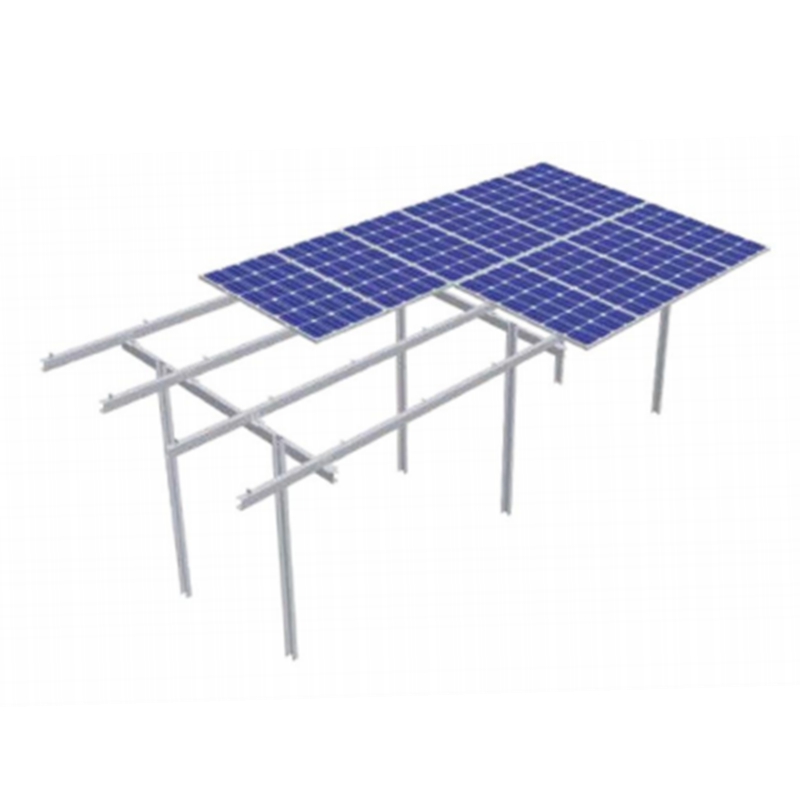

Photovoltaic Ground Mounting ll

technical parameters

Installation Site:Ground

Foundation:C-shape,1-shape,几-shape Piles

Tilt Angle:0-60°

Wind Load:≤60m/s

Snow Load:≤1.6KN/㎡

Ground Clearance:≤500-2000mm

Applicable Solar Module:Framed or Frameless

Panel Layout:Portrait or Landscape

Design Standard:Euro Code/EN1991/1993/1994,BS 6399, ASCE 7-10

International Building Code IBC 2009

California Building Code CBC 2010

Material:Q235B(Hot-Dip Galvanized)

Fastener:SUS304 & Hot Dip Galvanized

Small Components：AL6005-T5(Anodized)

Color:Silver or Customized

Warranty:10 Years

Inquire Now

Product Description

Ground Solar PV Mounting System is applied for the installation of large-scale and utility-scale solar PV power plant. Components are made of hot-dip galvanized steel, with good performance with varied solar modules. Unique piles and structure design save installation time and cost.

Advantages

Unique Pile Design

Unique post design suitable for varied soil conditions and strengthen the whole structure stability

Pre-assembled Components Save Onsite Installation Time

Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.

Flexibility and Adjustability

The structure can be adjusted with some tolerance with east-west.west-south and south directions, assuring flexible on-site installation to achieve best yield for solar modules

Compatible to Varied Solar Modules

Module clamps, the system compatible with most kinds of framed60-cell,72-cell, half-cut cells modules and frameless modules

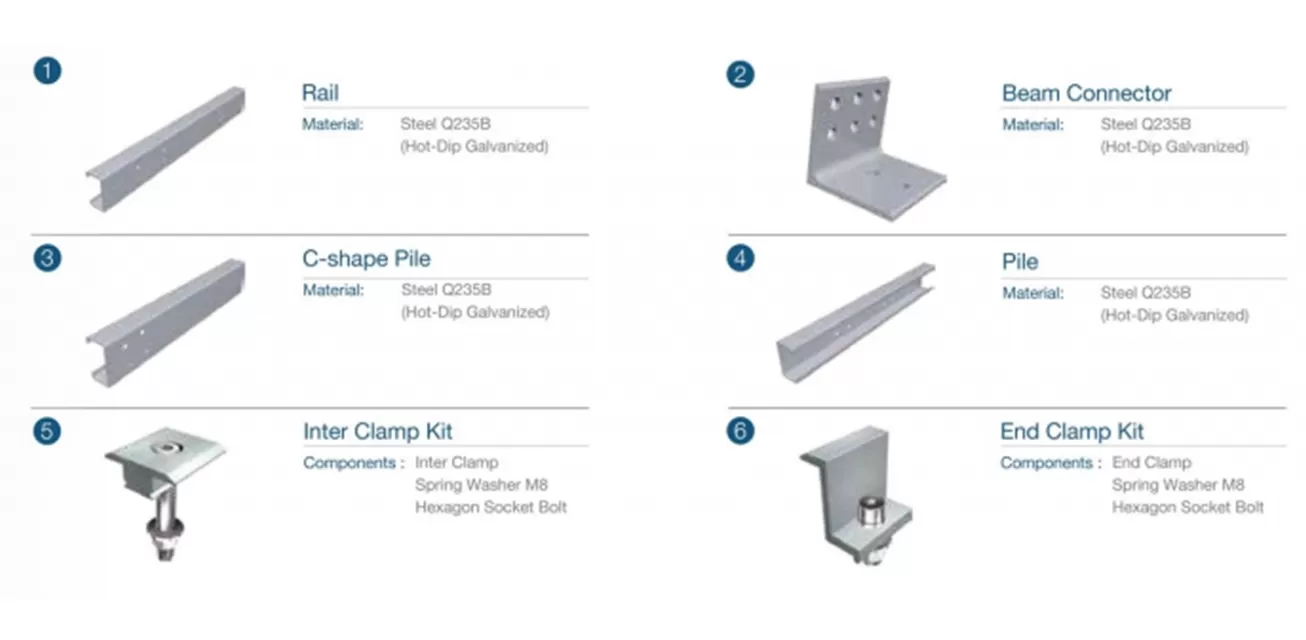

Components
