Ground Mounting System
1.Product parameters
Application: Ground
Panel inclination angle: 0-45°
Snow load: 1.5KN/M2 or customized
Recommended wind speed: 60m/s or customized horizontal/vertical
Foundation spacing: Depends on the load
Material: Hot-dip galvanized steel Q235B
Standard: ASCE_7-10, JIS C8955:2017, EN1090, International Building, Code IBC 2009
2.Product Overview

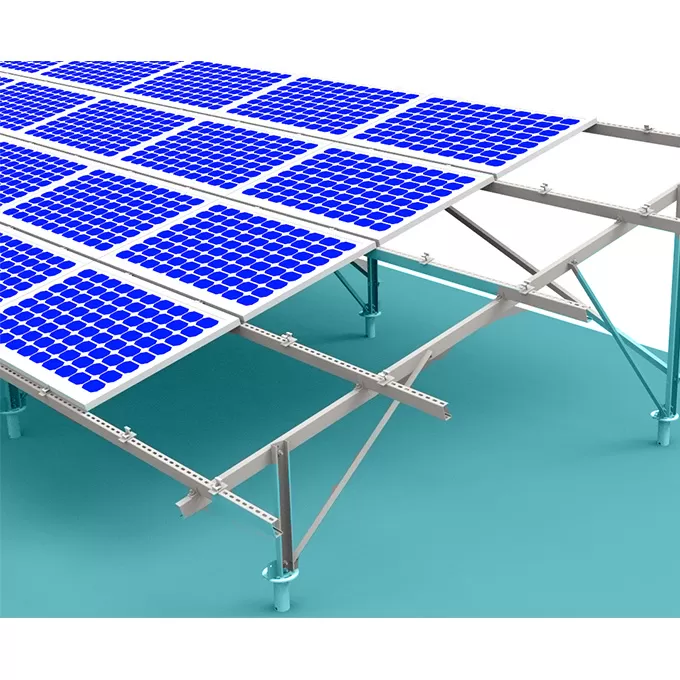

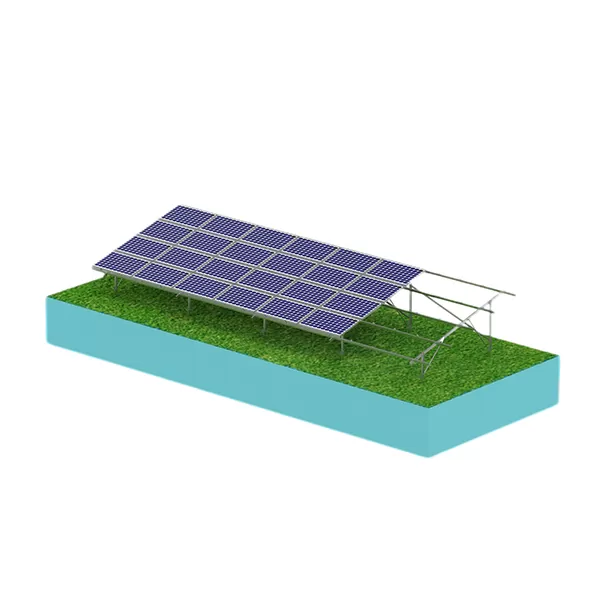

The YJ C steel solar ground mounting system (large) launched
by Yijia adopts an economical and practical steel structure,
which is specially designed for the construction of large solar
energy. The surface of the bracket is treated with hot-dip
galvanizing process, which significantly improves the corrosion
resistance of the system and ensures long-term stable use. In
addition, the height of the bracket can be adjusted flexibly,
whether it is a rising mountain or a rooftop desert, it can easily
achieve different power station standing.
3.Advantage
● Better stability

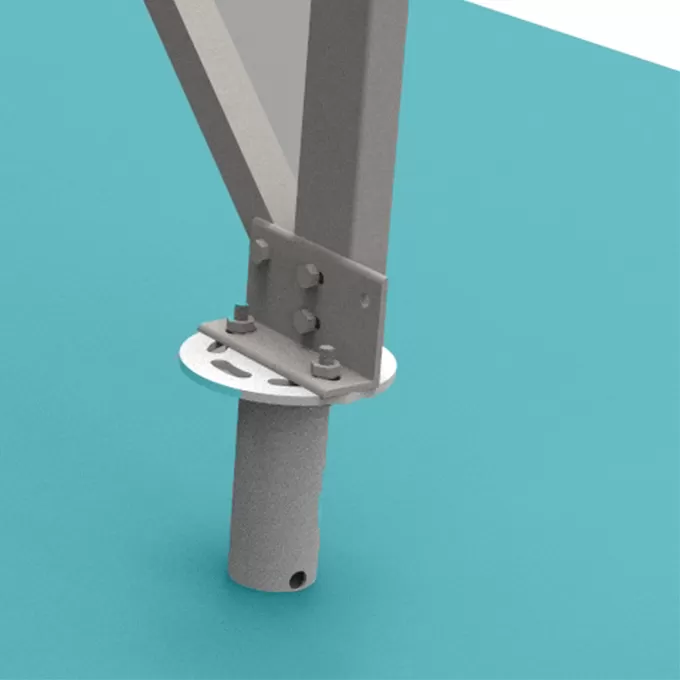

● Suitable for foundations made of concrete and anchor bolts
● High preload
● Easy installation
● High strength
01
ASCE_7-10
02
JIS C8955:2017
03
EN1090
04
International Building
05
Code IBC 2009
06
Product Specification
Application | Ground |
| Panel inclination angle | 0-45° |
| Snow load | 1.5KN/M2 or customized |
Recommended wind speed | 60m/s or customized horizontal/vertical |
| Foundation spacing | Depends on the load |
Material | Hot-dip galvanized steel Q235B |
Product parameters
Application: Ground
Panel inclination angle: 0-45°
Snow load: 1.5KN/M2 or customized
Recommended wind speed: 60m/s or customized horizontal/vertical
Foundation spacing: Depends on the load
Material: Hot-dip galvanized steel Q235B
Standard: ASCE_7-10, JIS C8955:2017, EN1090, International Building, Code IBC 2009
Application
In order to meet diverse installation needs, we provide a variety of customization options:
Size customization: Tailor the specifications and dimensions of the bracket according to the project site and layout requirements.
Function customization: Optimize the bracket function configuration to achieve personalized functions such as tracking adjustment and quick installation.
Accessory customization: Configure various exclusive accessories according to the actual needs of the project to ensure the efficiency and stability of the system installation.
