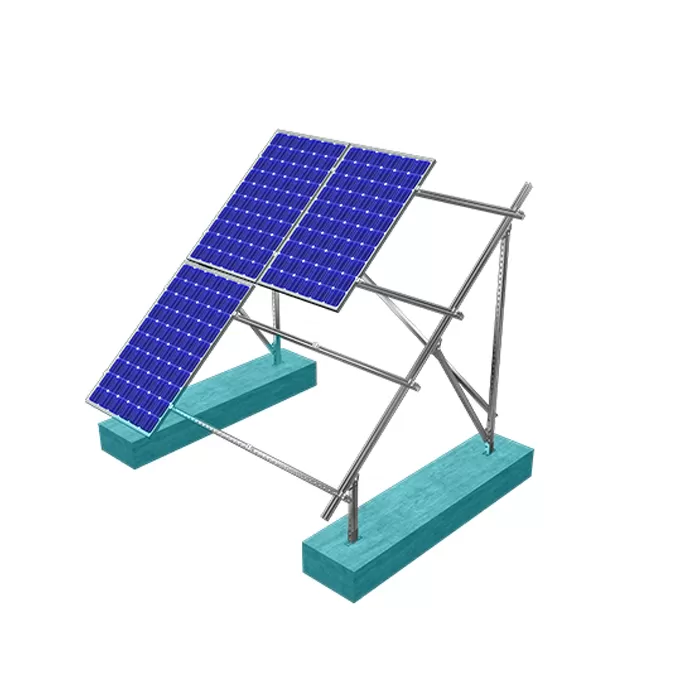

Ground Mounting System
Product parameters
Application: Ground
Panel inclination angle: 0-45°
Snow load: 1.5KN/M2 or customized
Recommended wind speed: 60m/s
Module positioning: horizontal/vertical
Foundation spacing: depending on load conditions
Material: Hot-dip galvanized steel Q235B
Standard: ASCE7-10, JIS C8955:2017, EN1090, International Building, Code IBC 2009
Product Overview
The YJ U steel solar ground bracket system (large) launched by YIJIA after optimizing the products on the market adopts an economical and practical steel structure, which is designed for home or large-scale solar construction. The bracket surface is treated with hot-dip galvanizing process, which significantly improves the corrosion resistance of the system and ensures long-term stable use. In addition, the bracket height can be flexibly adjusted, whether it is a towering mountain or a rooftop desert, different power station elevations can be easily achieved.
Customized services
In order to meet diverse installation needs, we provide a variety of customization options:
Size customization: Tailor the specifications and dimensions of the bracket according to the project site and layout requirements.
Function customization: Optimize the bracket function configuration to achieve personalized functions such as tracking adjustment and quick installation.
Accessory customization: Configure various exclusive accessories according to the actual needs of the project to ensure the efficiency and stability of the system installation.
01
ASCE_7-10
02
EN1090
03
JIS C8955:2017
04
International Building
05
Code IBC 2009
Product Specification
Application scenari | ground |
Panel tilt angle | 0-45° |
Snow load | 1.5 kN/m2 or customizabl |
Recommended wind speed | 60 m/s or customizable (horizontal/vertical) |
Foundation spacin | depends on the load |
Materia | hot-dip galvanized steel Q235B |
Display introduction
Better stability
Suitable for most foundations
High pre-installation, easy installation
High strength, high rust resistance
