Roof Mounting System
Product profile
●System Name : Roof Solar PV Mounting System Matrix II
●Installation Site : Flat Roof, Pitched Roof
●Roof Type : Concrete Roof, Metal Roof
●Tilt Angle : 0-60°
●Wind Load : ≤60m/s
●Snow Load: ≤1.6KN/m²
●Applicable Solar Module：Framed or Frameless
●Panel Layout：Portrait or Landscape
Overview

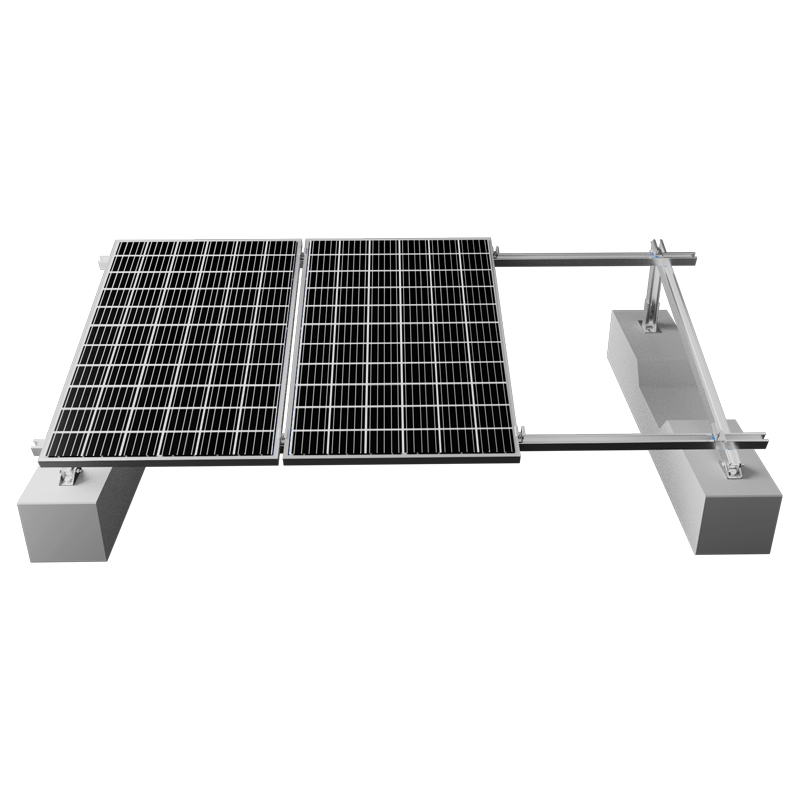

Roof Solar PV Mounting System Matrix II is derived from RM
I to meet different roof projects demands. Solar modules can be
arranged with single or double rows of landscape or portrait
orientation. Quick installation and stable structure are assured by
the modular Patented design.
Advantages
System Compatibility
Components mostly pre-assembled in factory to assure quick and reliable installation on site. Suitable for different flat rooftop,
and compatible to different types of solar modules.
Unique Mudsill Design
The mudsill can be fixed to flat roof or pitched roof with concrete foundation or steel foundation.
Solar Module Layout Flexibility
Both landscape and portrait solar module layout are suitable.Both single row and double rows layout can be achieved
separately or combined.
Adjustability
Tilt angle can be adjustable
01
Euro Code/EN1991/1993/1994
02
BS 6399
03
ASCE 7-10
04
International Building Code IBC 2009
05
California Building Code CBC 2010
07
Product Specification
| Name | Roof Solar PV Mounting System Matrix II |
| Installation Site | Flat Roof, Pitched Roof |
| Roof Type | Concrete Roof, Metal Roof |
| Tilt Angle | 0-60° |
| Wind load | <60m/s |
| Snow load | <1.6KN/M² |
| Applicable Solar Module | Framed or Frameless |
| Panel Layout | Portrait or Landscape |
| Material | AL6005-T5(Anodized) |
Components
●Design Standard : Euro Code/EN1991/1993/1994,BS 6399, ASCE 7-10 Lnternational Building Code IBC 2009,
California Building Code CBC 2010
●Material : AL6005-T5(Anodized)
●Fastener : SUS304 & Zinc- Nickel Alloy Electroplated Steel
●Small Components ：AL6005-T5(Anodized)
●Color : Silver or Customized
●Warranty : 10-Year Warranty
Application
●System Name : Roof Solar PV Mounting System Matrix II
●Installation Site : Flat Roof, Pitched Roof
●Roof Type : Concrete Roof, Metal Roof
●Tilt Angle : 0-60°
●Wind Load : ≤60m/s
●Snow Load: ≤1.6KN/m²
●Applicable Solar Module：Framed or Frameless
●Panel Layout：Portrait or Landscape
