Product profile
●System Name: Balcony Solar Mounting System
●Installation Site: Balcony
●Installation Base: Metal Railings，Wall，Concrete Roof
●Mounting Angle: 10°-30°
●Wind Load: ≤30m/s
●Snow Load: ≤1.0KN/m2
●Applicable Solar Module: Framed
●Panel Layout: Horizontal
Product summary

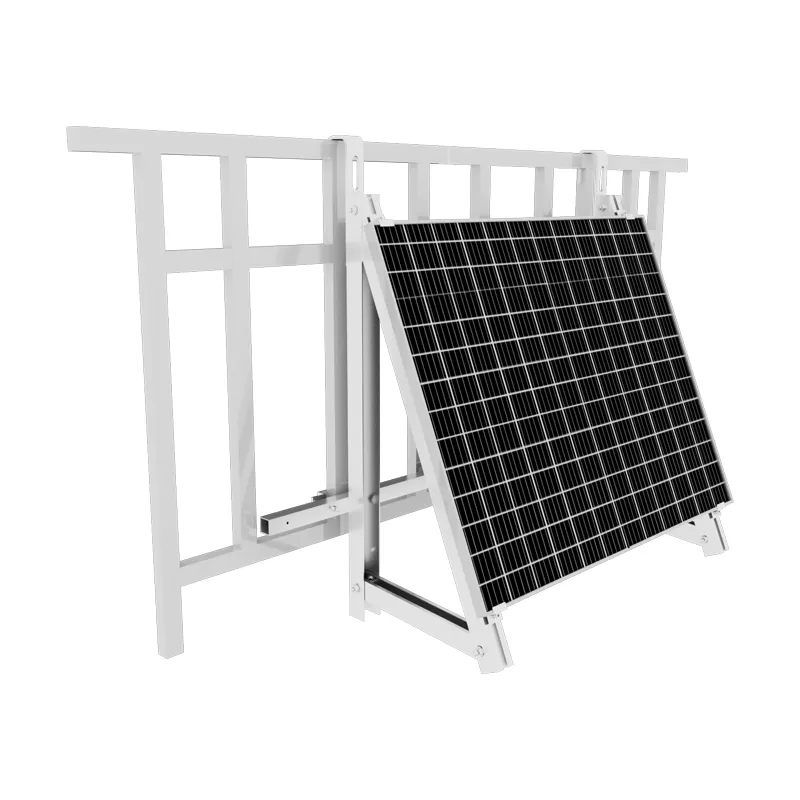

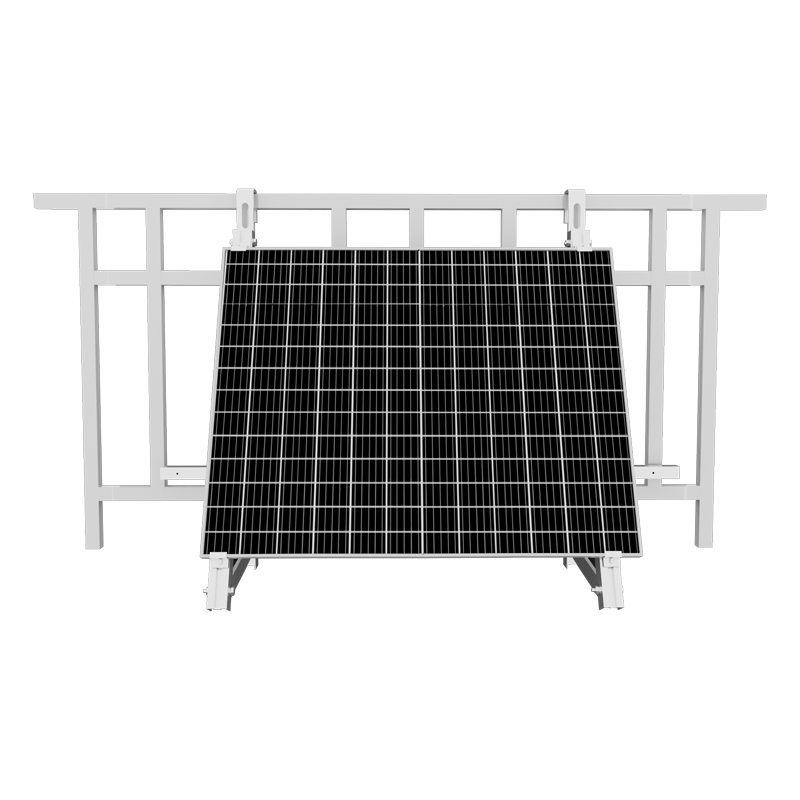

Balcony Solar Mounting System is a Solar Mounting System product
installed on balcony railings, which can easily realize the construction of
photovoltaic power plants on the balcony. The system is all bolted and fixed,
eliminating the need for welding and drilling during installation.

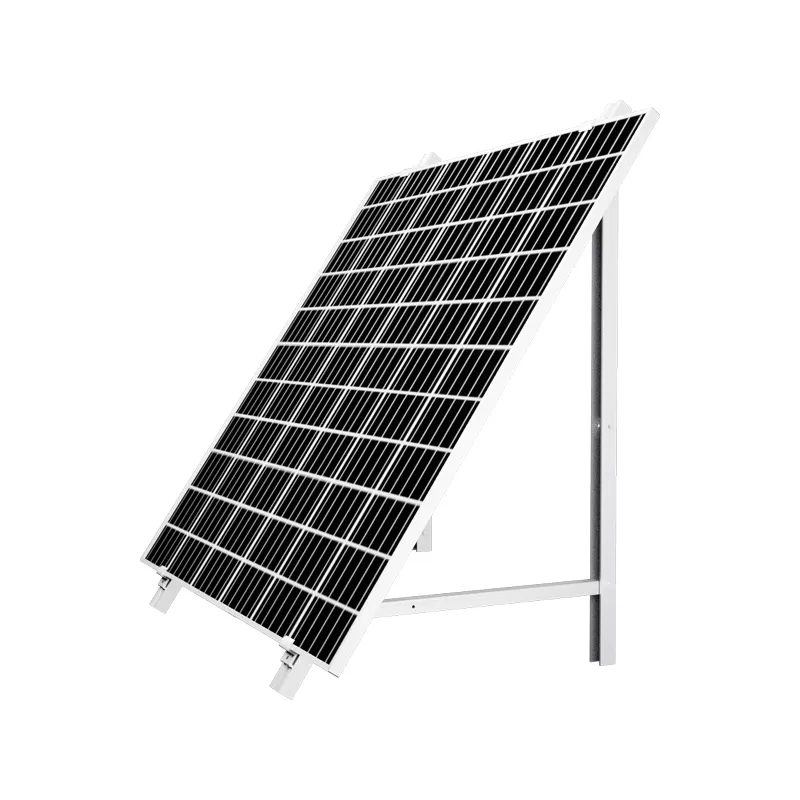

The unique telescopic tube support leg design allows the angle of the panel
to be adjusted at any time.
Advantages
Quick installation
Installation and removal are very simple and fast, 1-2 people can complete the installation.
Adjustable angle
The tilt angle of the panels can be flexibly adjusted according to the installation site to obtain the best power generation
efficiency, with a maximum tilt angle of 30°.
No welding required
The system is all bolted and fixed, eliminating the need for welding and drilling during installation.
01
Euro Code/EN1991/1993/1994
02
BS 6399
03
ASCE 7-10
04
International Building Code IBC 2009
05
California Building Code CBC 2010
07
Product Specification
| Name | Balcony Solar Mounting System |
| Installation Site | Balcony |
| Installation Base | Metal Railings，Wall，Concrete Roof |
| Tilt Angle | 10-30° |
| Wind load | <30m/s |
| Snow load | <1.0KN/M² |
| Applicable Solar Module | Framed |
| Panel Layout | Horizontal |
| Material | Steel & AL6005-T5 |

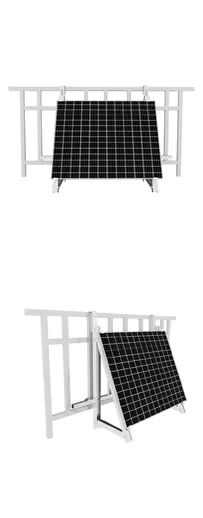

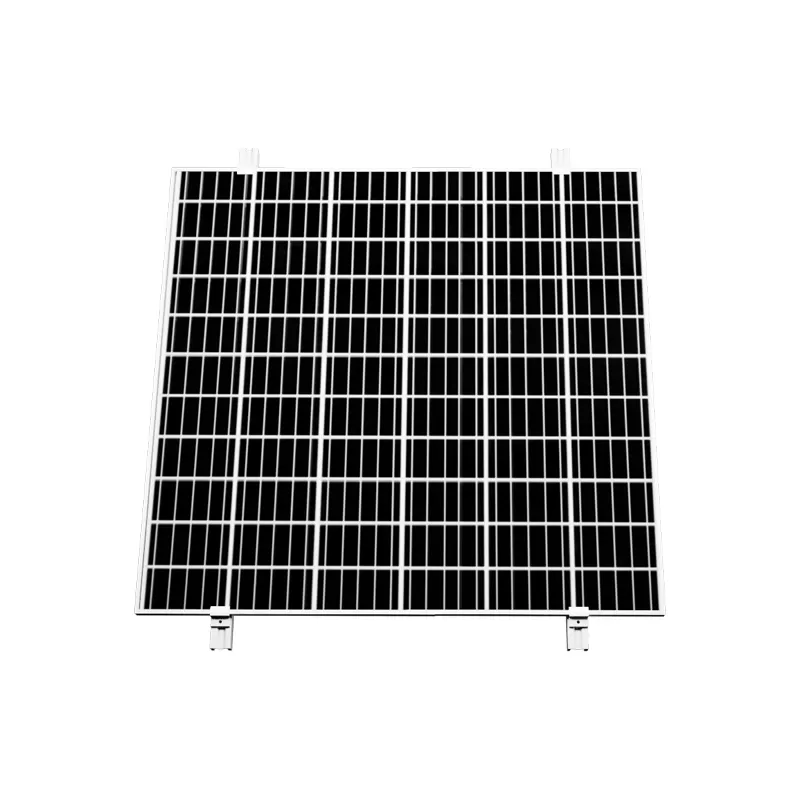

Components
●System Name: Balcony Solar Mounting System
●Installation Site: Balcony
●Installation Base: Metal Railings，Wall，Concrete Roof
●Mounting Angle: 10°-30°
●Wind Load: ≤30m/s
●Snow Load: ≤1.0KN/m2
●Applicable Solar Module: Framed
●Panel Layout: Horizontal

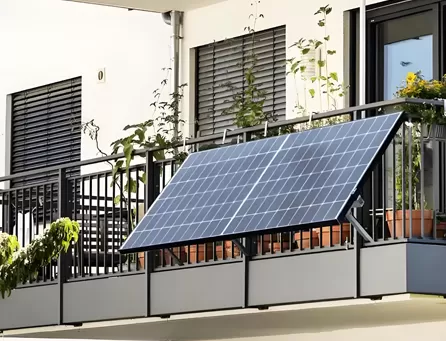

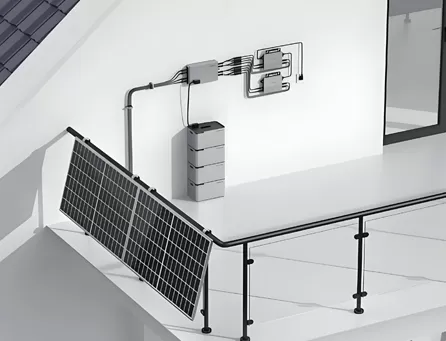

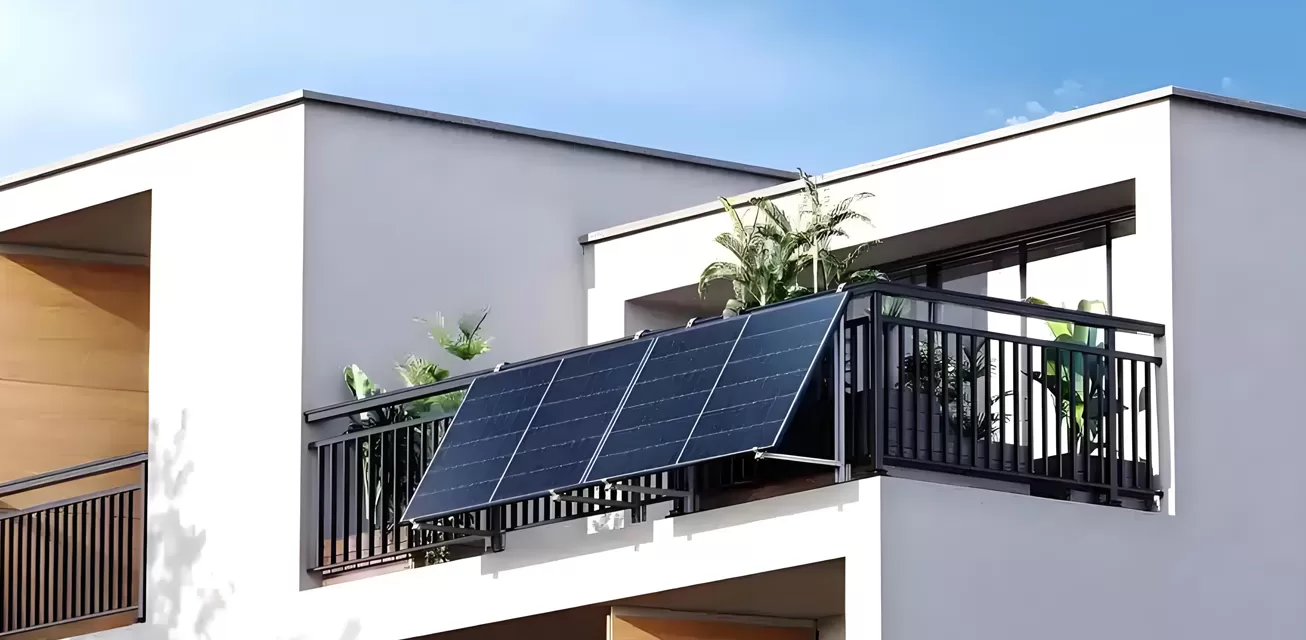

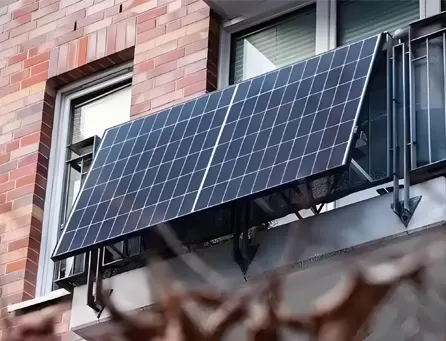

Application
●Material ：Steel & AL6005-T5
●Fastener ：SUS304
●Small Components ：AL6005-T5
●Color ： Natural Silver or Customized
●Warranty ：10-Year Warranty
