Roof Mounting System
Product profile
●System Name: Roof Solar PV Mounting System
●Installation Site: Flat Concrete roof, Flat ground, Membrane roof
●Roof Type: Concrete Ballast
●Tilt Angle：0-30°
●Wind Load： ≤44 m / s
●Snow Load：≤1.6KN/m2
●Applicable Solar Module：Framed/Frameless, Any width panel
●Panel Layout：Landscape
Product summary

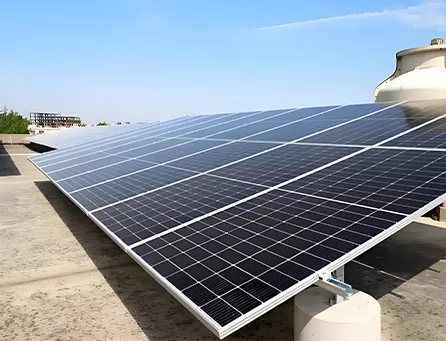

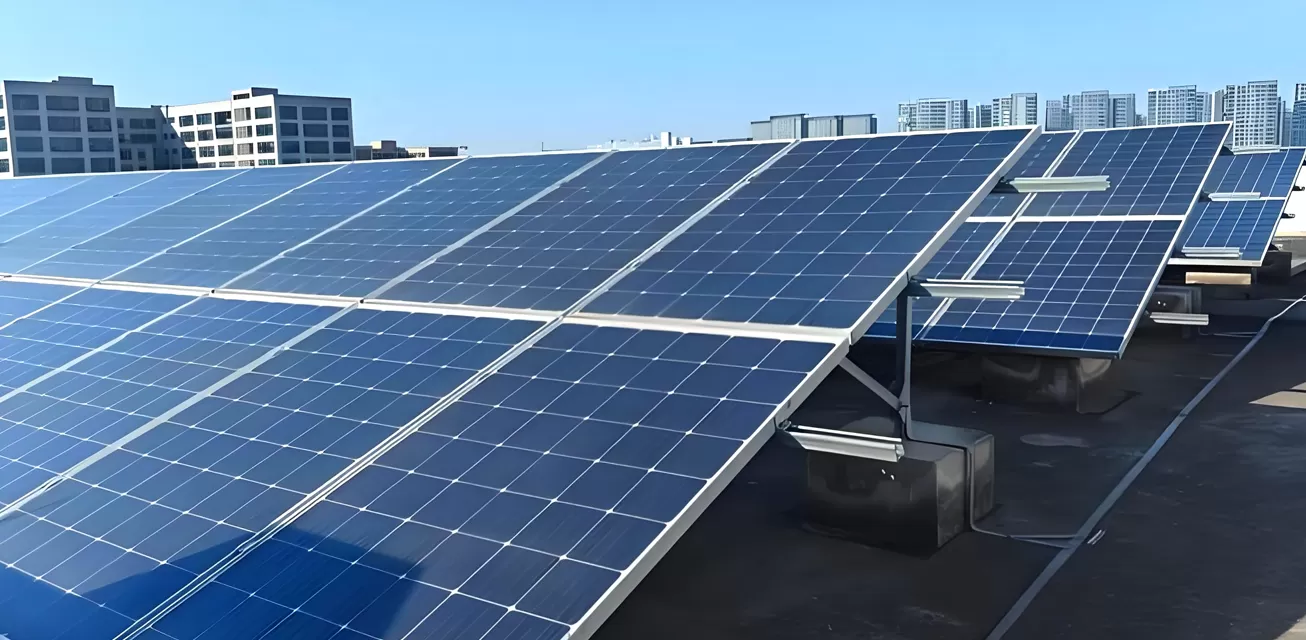

Roof Solar PV Mounting System RM-Ad is a non-penetration
solution for flat rooftop，to meet different tilt angles installation. It is
applicable to the roof areas with medium wind load. Quick installation and stable structure are assured by the modular patented design.
Advantages
High Durability Ensure the Structure Strength
Professional structure design and high-density aluminum
material ensure the stability and strength of the structure
Unique Matrix Design
The matrix design further assures the stability of the whole
system, and flexibly compatible with concrete block or ballast
foundation.
Reasonable Installation and Package Design
Simplified components configuration lead to quicker installation
and smaller package size, saving installation cost and freight.
01
Euro Code/EN1991/1993/1994
02
BS 6399
03
ASCE 7-10
04
International Building Code IBC 2009
05
California Building Code CBC 2010
| Name | Roof Solar PV Mounting Syste |
| Installation Site | Flat Concrete roof, Flat ground, Membrane roof |
| Roof Type | Concrete Ballast |
| Mounting Angle | 10°-30° |
| Wind Load | ≤30m/s |
| Snow Load | ≤1.0KN/M² |
| Applicable Solar Module | Framed |
| Panel Layout | Horizontal |
| Material | Steel & AL6005-T5 |
07
Product Specification
| Fastener | SUS304 |
| Small Components | AL6005-T5 |
| Color | Natural Silver Customized |
Components
●System Name: Roof Solar PV Mounting System
●Installation Site: Flat Concrete roof, Flat ground, Membrane roof
●Roof Type: Concrete Ballast
●Tilt Angle：0-30°
●Wind Load： ≤44 m / s
●Snow Load：≤1.6KN/m2
●Applicable Solar Module：Framed/Frameless, Any width panel
●Panel Layout：Landscape
Application
●Material: Steel & AL6005-T5
●Fastener: SUS304
●Small Components: AL6005-T5
●Color: Natural Silver or Customized
●Warranty: 10-Year Warranty
