Color steel tile fixture photovoltaic system
technical parameters
System Name:Color steel tile fixture photovoltaic system
Installation Site:Pitched Roof
Foundation:Trapezoidal Metal Roof Support
Tilt Angle:0-15°
Wind Load:≤60m/s
Snow Load:≤1.6KN/㎡
Applicable Solar Module:Framed or Frameless
Panel Layout:Portrait or Landscape
Design Standard:AS/NZS 1170, DIN 1055,JIS C8955: 2017
International Building Code IBC 2009
California Building Code CBC 2010
California Building Code CBC 2010
Material:Q235B(Hot-Dip Galvanized) & A16005-T5(Anodized)

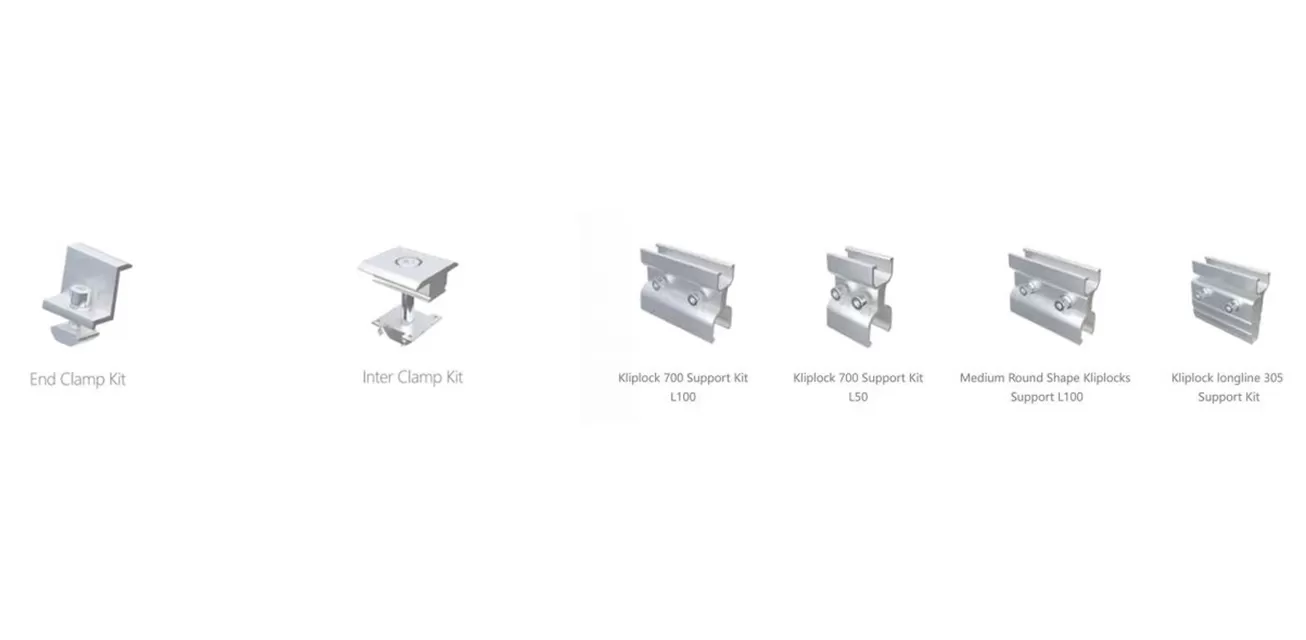

Fastener:SUS304&Zinc-Nickel Alloy Electroplated Steel
Small Components:A16005-T5(Anodized)
Color:Silver or Customized
Warranty:10 Years
