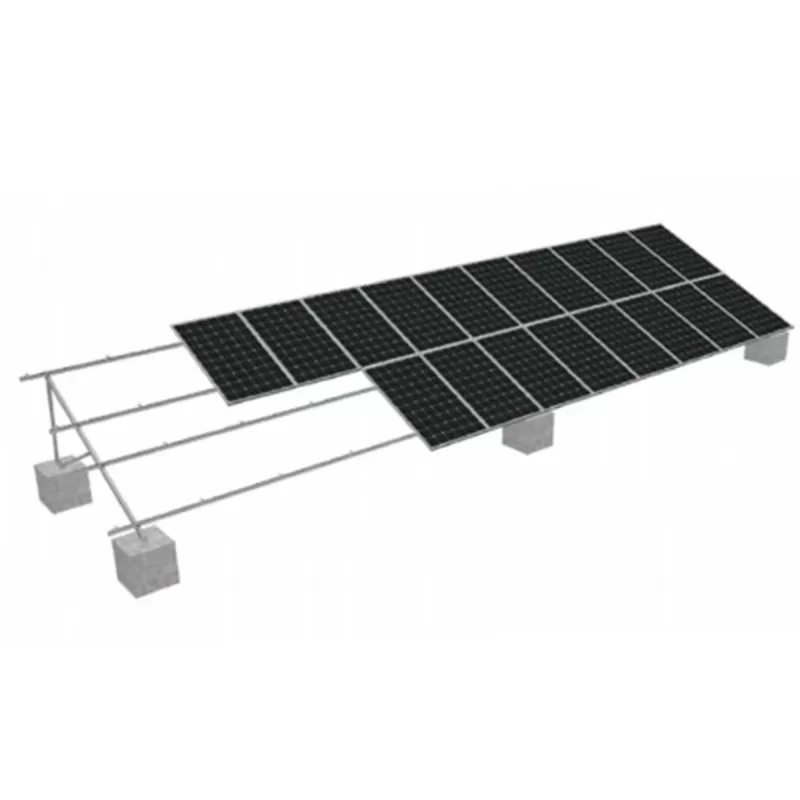

Double-row Tripod Base-Beam-Free
technical parameters
System Name:Double-row Tripod Base-beam-free
Installation Site:Flat roof,ground
Roof Type:Concrete foundation, steel foundation
Tilt Angle:0-60°
Wind Load:≤60m/s
Snow Load:≤1.6KN/㎡
Applicable Solar Module:Framed/Frameless
Panel Layout:Portrait or Landscape
Design Standard:Euro Code/EN1991/1993/1994, BS 6399, ASCE 7-10
International Building Code lBC 2009
California Building Code CBC 2010
Material:AL6005-T5(Anodized)
Fastener:SUS304 & Zinc-Nickel Alloy Electroplated Steel
Small Components:AL6005-T5(Anodized)
Color:Silver or Customized
Warranty:10 Years
