Roof Mounting System
Product profile
●System Name: Tile Hook
●installation Site: Pitched Roof
●Foundation: Tile,Flat Tile,Asphalt Shingle Tile
●Tilt Angle: 5-45°
●Wind Load: ≤60m/s
●Snow Load: ≤1.6KN/m²
●Applicable Solar Module: Framed or Frameless
●Panel Layout: Portrait or Landscape
●Hook Material: SUS304&AL6005-T5(Anidized)
●Fastener: SUS304&Zinc-Nickel Alloy Electroplated Steel
●Small Components :AK6005-T5(Anodized)
●Color ：Silver ot Customized
●Warranty : 10 Years
Product summary

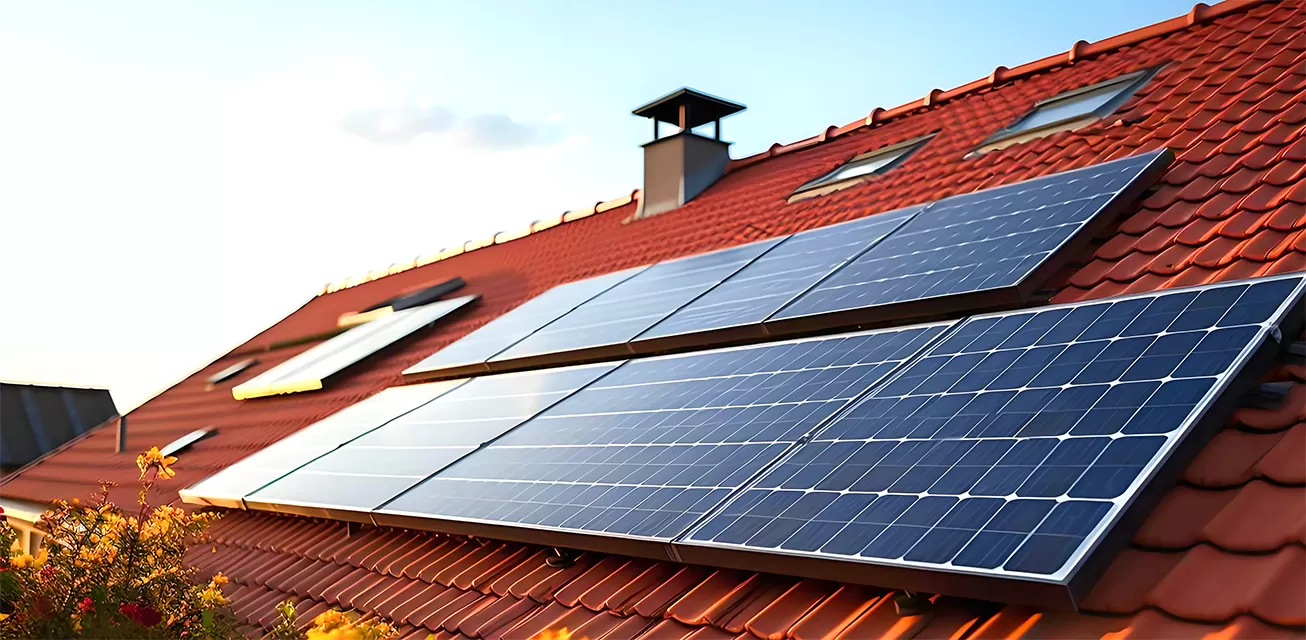

Tile Roof Hook Solar PV Mounting System is applied to tile
roof residential and commercial solar projects. The system can
achieve stable and strong connection between the roof support
structure and solar modules with modular Patented design. Pre-assembled kits save the installation time and cost onsite.
Advantages
Applicable for Different Tile Roofs
Design project by project, selecting configuration of mounting system components flexibly
Save Installation Time and Cost
Pre-assembled components and clear installation manuals aresupplied to save the onsite installation time and cost
Compatible to Different Types of Solar Modules
Compatible to most kinds of framed 60-cell, 72-cell, half-cutcells modules and frameless modules.
01
Euro Code/EN1991
02
Euro Code/EN1993
03
Euro Code/EN1994
04
BS6399
05
ASCE7-10
07
Product Specification
| Name | Tile Hook |
| Installation Site | Pitched Roof |
| Foundation | Tile, Flat Tile, Slate Tile, Asphalt Shingle Tile |
| Tilt Angle | 5-45° |
| Wind load | <60m/s |
| Snow load | <1.6KN/M² |
| Applicable Solar Module | Framed or Frameless |
| Panel Layout | Portrait or Landscape |
| Hook Material | SUS304&AL6005-T5(Anodized) |
Components
●System Name: Tile Hook
●installation Site: Pitched Roof
●Foundation: Tile,Flat Tile,Asphalt Shingle Tile
●Tilt Angle: 5-45°
●Wind Load: ≤60m/s
●Snow Load: ≤1.6KN/m²
●Applicable Solar Module: Framed or Frameless
●Panel Layout: Portrait or Landscape
●Hook Material: SUS304&AL6005-T5(Anidized)
●Fastener: SUS304&Zinc-Nickel Alloy Electroplated Steel
●Small Components :AK6005-T5(Anodized)
●Color ：Silver ot Customized
●Warranty : 10 Years
Application
●Tile Roof Solar PV Mounting System
●Components：Universal Clamp Kit H28-46、End Clamp Kit、End Clamp Kit
●Optional Hook Type：Tile Hook 1 、Slate Tile Hook - 02 、Tile Hook 125 、Slate Tile Hook - 04
