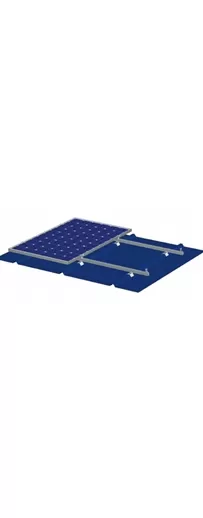

Trapezoidal Metal Roof Solar PV Mounting System
technical parameters
System Name:Trapezoidal Metal
Installation Site:Pitched Roof
Foundation:Trapezoidal Metal Roof Support
Tilt Angle:0-15°
Wind Load:≤60m/s
Snow Load:≤1.6KN/㎡
Applicable Solar Module:Framed or Frameless
Panel Layout:Portrait or Landscape
Design Standard:Euro Code/EN1991/1993/1994,BS 6399, ASCE 7-10
International Building Code lBC 2009
California Building Code CBC 2010
Material:AL6005-T5(Anodized)
Fastener:SUS304 & Zinc-Nickel Alloy Electroplated Steel

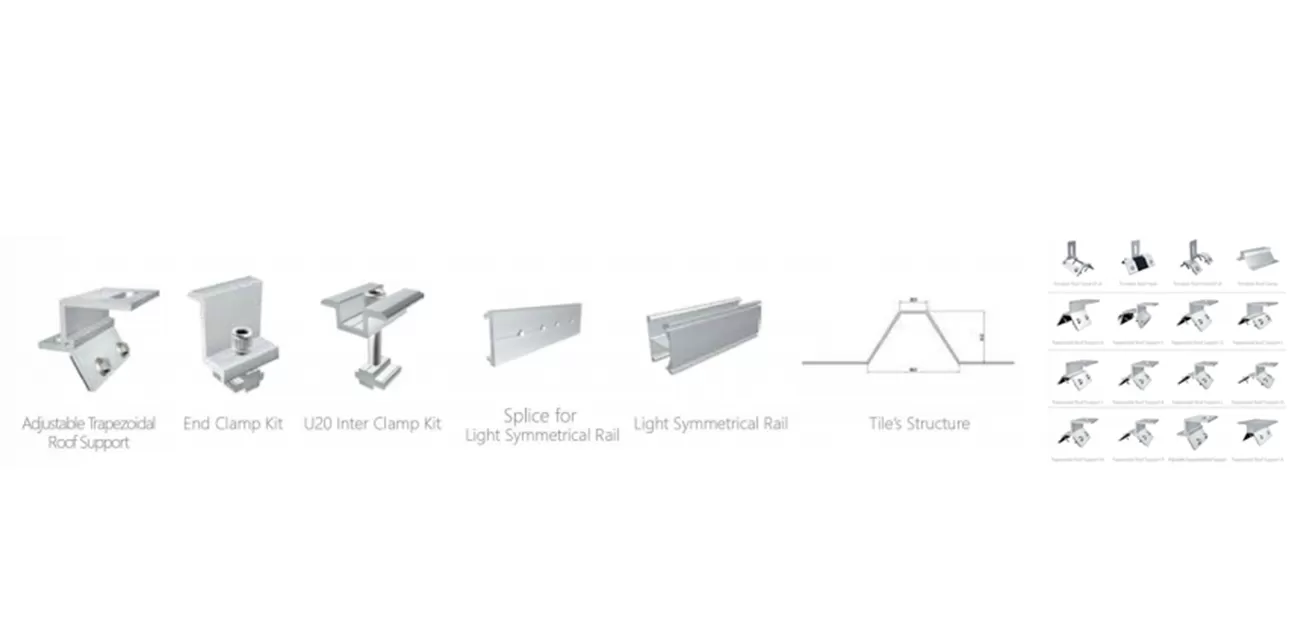

Components:AL6005-T5(Anodized)
Color:Silver or Customized
Warranty:10 Years
