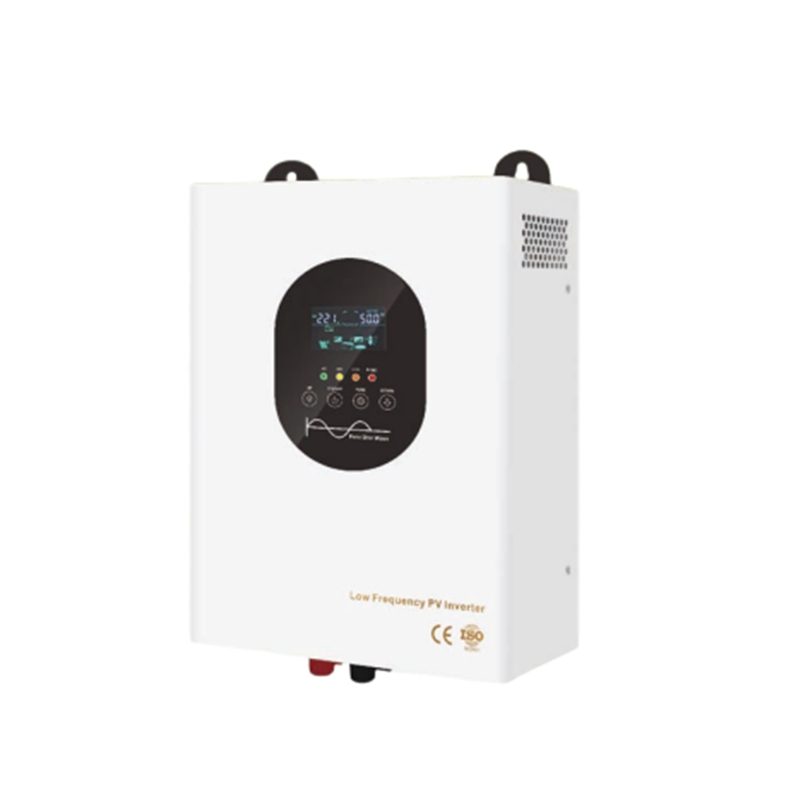

LF series frequency inverter/inverter controller

Power

Model:LF 10212/24

Rated Power:1000W

Phase Type:Single phase L-N

Battery

Standard Battery Voltage:12/24VDC

Battery Type:Lead-acid battery/ Lithium battery/Custom battery

Built-in Controller MPPT(optional)

Rated Current:40A/60A

Maximum PV input Power:12V system:40A(560W)/60A(840W),24V system:40A(1120W)/60A(1680W)

Max PV Input Voltage(Voc)(At The Lowest Temperature):120VDC

MPPT Tracking Voltage Range:12V system(15V-80V);24V system(30V-100V)

AC input

Rated Input Voltage:220VAC/230VAC/240VAC

AC Input Voltage Range:145VAC-275VAC(220VAC)/155VAC-285VAC(230VAC)/165VAC-295VAC(240VAC)

AC input Frequency:45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz)

AC Output

Output Wave:Pure sine wave

Conversion Efficiency:>85%

AC Output Voltage /Frequency Range (lNV Mode):220VAC±2%/230VAC±2%/240VAC±2%，50/60Hz±1%

Dimensions and Weight

Product Size (L*w*Hmm):333*253*126

Package Size(L*W*Hmm):423*318*205

N.W.(kg):9

G.W.(kg):10
