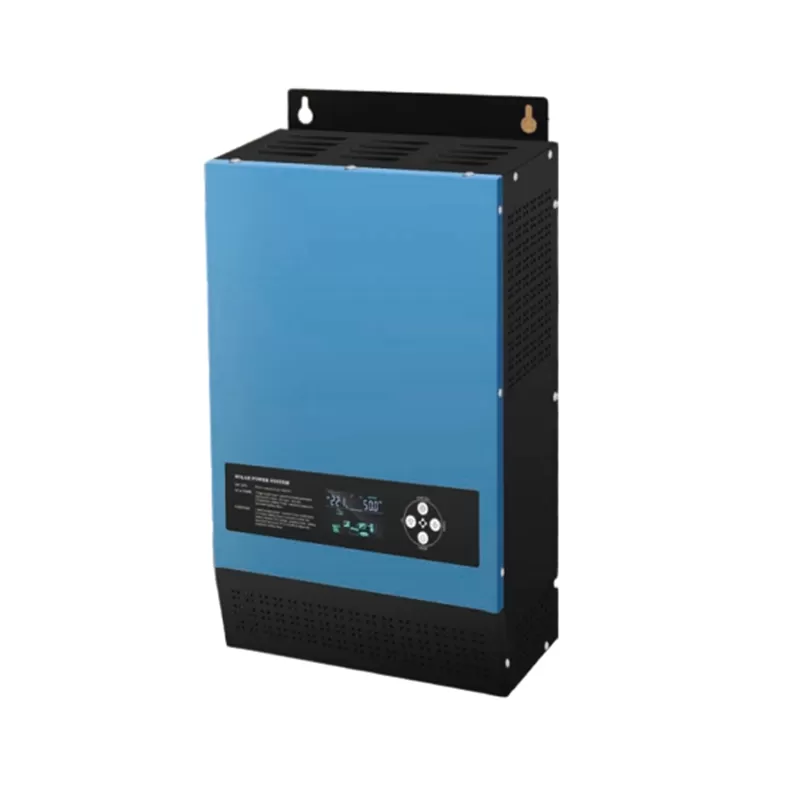

LS series split phase low frequency inverter/ solar inverter

AC input

DC Input Voltage Range:10.5-15VDC(Single battery voltage)

AC Input Voltage:110V/120AC(L1-N)or220VAC/240AC(L1-L2)

AC Input Voltage Range:85VAC-138VAC(110VAC)/95VAC~148VAC(120VAC)/170VAC~275VAC(220VAC)/190VAC~295VAC(240VAC)

AC input Frequency:45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz)

AC charging method:Three-stage(constant current, constant voltage, floating charge)

AC Output

Efficiency(Battery Mode):≥85%

Output Voltage(Battery Mode):L1-N/L2-N:110VAC or120VAC;L1-L2:220VAC or 240AC

Output Frequency(Battery Mode):50/60Hz±1%

Output Wave(Battery Mode):Pure Sine Wave

Efficiency(AC Mode):≥99%

Output Voltage(AC Mode):L1-N/L2-N:110VAC or120VAC;L1-L2:220VAC or 240AC

Output Frequency(AC Mode):Follow input

Output waveform distortion(Battery Mode):≤3%(Linear load)

No load loss(Battery Mode):≤0.8% rated power

No load loss(AC Mode):≤2% rated power(charger does not work in AC mode)

No load loss(Energy saving Mode):≤10W

Other

Protection:Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection

Working Mode:Battery First/AC First/Saving Energy Mode (can be set)

Display:LCD

Thermal method:Cooling fan in intelligent control

Communications:RS485,APP(WIFI monitoring or GPRS monitoring)

Operating Temperature:-10℃~-40℃

Storage temperature:-15°℃~60°C

Noise:≤55dB

Elevation:2000m(More than derating)

Humidity:0%~95%,No condensation
